PlackettBurman experimental design is used to identify the most important factors early in the experimentation phase when complete knowledge about the system is usually unavailable. Developed in 1946 by statisticians Robin L. Plackett and J.P. Burman, it is an efficient screening method to identify the active factors using as few experimental runs as possible.
In PlackettBurman designs, main effects have a complicated confounding relationship with twofactor interactions. Therefore, these designs should be used to study main effects when it can be assumed that twoway interactions are negligible.
In practical use, twolevel full or fractional factorial designs, and PlackettBurman designs are often used to screen for the important factors that influence process output measures or product quality. These designs are useful for fitting firstorder models (which detect linear effects) and can provide information on the existence of secondorder effects (curvature) when the design includes center points.
Full Factorial Experiment
To demonstrate the effectiveness of PlackettBurman design, an experiment was conducted to compare a full factorial experiment with a PlackettBurman design. Let’s start with the full factorial experiment, which consists of five factors with two levels for each factor.
In this case the total number of experiments is 2^{5} = 32 (Table 1). The characteristic of the response, Y, is the larger the better.
Table 1: Five Factor Analyses with Two Levels (Full Factorial Design)
A
B
C
D
E
Y
1
1
1
1
1
75.87
1
1
1
1
1
76.14
1
1
1
1
1
109.95
1
1
1
1
1
109.55
1
1
1
1
1
80.17
1
1
1
1
1
80.3
1
1
1
1
1
114.07
1
1
1
1
1
114.05
1
1
1
1
1
68.77
1
1
1
1
1
68.63
1
1
1
1
1
102.41
1
1
1
1
1
102.27
1
1
1
1
1
72.95
1
1
1
1
1
72.68
1
1
1
1
1
106.98
1
1
1
1
1
106.65
1
1
1
1
1
75.79
1
1
1
1
1
75.71
1
1
1
1
1
110.08
1
1
1
1
1
110.04
1
1
1
1
1
80.49
1
1
1
1
1
80.86
1
1
1
1
1
113.49
1
1
1
1
1
114.06
1
1
1
1
1
68.22
1
1
1
1
1
68.6
1
1
1
1
1
102.5
1
1
1
1
1
102.3
1
1
1
1
1
73.03
1
1
1
1
1
73.3
1
1
1
1
1
106.08
1
1
1
1
1
106.7
Normal Plot
The primary goal of screening designs is to identify the vital few factors or key variables that influence the response. A normal plot is one of the graphs that help identify these influential factors.
In the normal probability plot of the effects, points that do not fall near the line have measured values that are significantly beyond the observed variation, and usually signal important effects. Important effects are larger and generally further from the fitted line than unimportant effects. Unimportant effects tend to be smaller and centered around zero.

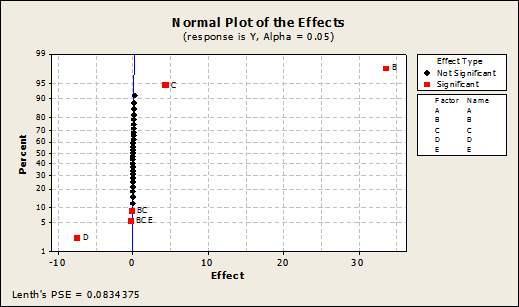

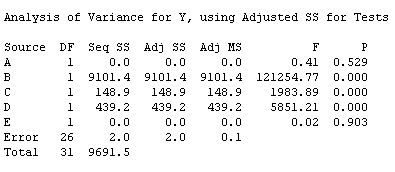

As shown in the normal plot (Figure 2) and the analysis of variance (ANOVA, Figure 3), the factors B, C and D are significant to the response. Additionally, there are twoway interactions between factors B and C and threeway interactions among B, C and E.
Main Effects Plot
In experimental design, a main effects plot is used in conjunction with ANOVA to examine differences among level means for one or more factors. It graphs the response mean for each factor level connected by a line. A main effect is present when different levels of a factor affect the response differently (shown as a slope on a twolevel plot).
Some general patterns to look for with main effects plots include the following:
 When the line is horizontal (parallel to the xaxis), then there is no main effect present. Each level of the factor affects the response in the same way, and the response mean is the same across all factor levels.
 When the line is not horizontal, then a significant main effect may be present. Different levels of the factor affect the response differently. The greater the slope, the greater the likelihood that a main effect is statistically significant.

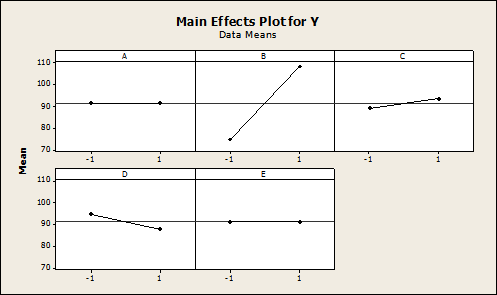

The factors B, C and D are shown to be significant to the response Y as shown in Figure 3.
Response Optimization
The Response Optimizer function in Minitab helps to identify the combination of input variable settings that jointly optimize a single response or a set of responses. (Note: Minitab requires the user create a starting point for the optimization and will find the first best solution based on the requested optimization objective.) This function provides an optimal solution for the input variable combinations and an optimization plot. The optimization plot is interactive – input variable settings on the plot can be adjusted to search for more desirable solutions.

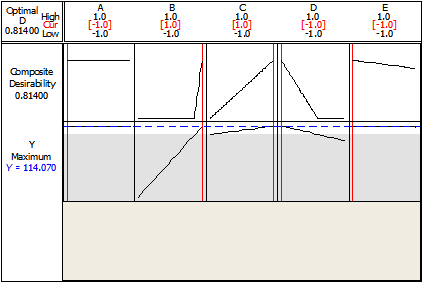

The nature of the response, Y, is “the larger the better” – and the maximum value that can be achieved in this experiment is 114.07, as shown in Figure 4.
That means to achieve the maximum value of Y, the process variables should be set as shown in Table 2.
Table 2: Levels of Process Variables (Full Factorial Design)
Variable
Optimal Level
Notes
A
1
A is insignificant and might not create high impact if it is changed to +1
B
+1

C
+1

D
1

E
1
E is insignificant and might not create high impact if it is changed to +1
PlackettBurman Experiment
Having completed the twolevel full factorial experiment, let’s turn to the PlackettBurman experiment for comparison. In this experiment five factors with two levels are considered. The total number of experiments is selected to be the minimum from the PlackettBurman design – 12 experiments (Table 3). Remember that for Y, the larger the better.
Table 3: Five Factor Analysis with Two Levels (PlackettBurman Design)
A
B
C
D
E
Y
1
1
1
1
1
75.67
1
1
1
1
1
102.4
1
1
1
1
1
113.71
1
1
1
1
1
72.95
1
1
1
1
1
102.32
1
1
1
1
1
113.85
1
1
1
1
1
106.51
1
1
1
1
1
72.66
1
1
1
1
1
68.62
1
1
1
1
1
75.54
1
1
1
1
1
109.28
1
1
1
1
1
75.69

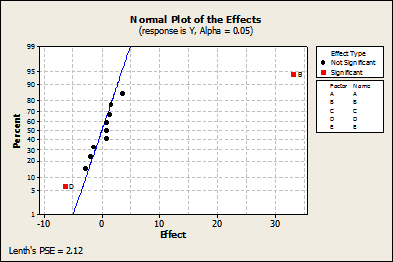

As shown in the normal plot in Figure 5, factors B and D are significant. As shown in Figure 6 with ANOVA, factors B, C and D are significant to the response Y. It is important to note that the significance of interactions is not displayed as PlackettBurman design is interested only in main effects.

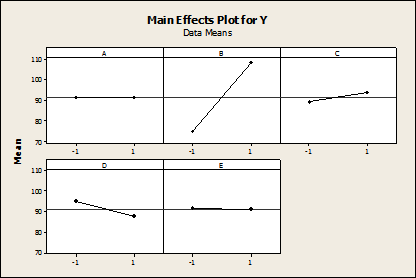

The main effects plot (Figure 7) shows that the factors B, C and D are significant to the response Y.

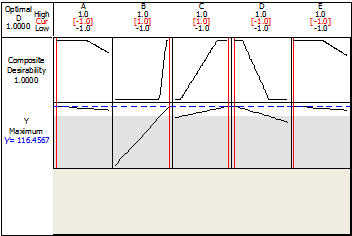

The nature of the response, Y, is the larger the better, and the maximum value that can be achieved in this experiment, according to the Response Optimizer (Figure 8), is 116.46.
Thus, to achieve the maximum value of Y, the process variables should be set as shown in Table 4.
Table 4: Levels of Process Variables (PlackettBurman Design)
Variable
Optimal Level
Notes
A
1
A is insignificant and might not create high impact if it is changed to +1
B
+1

C
+1

D
1

E
1
E is insignificant and might not create high impact if it is changed to +1
Comparison of the DOE Results
A comparison of the results obtained from the both the full factorial design of experiments and the PlackettBurnam design of experiments are shown in Table 5.
Table 5: Comparison of Results
Full Factorial Design
PlackettBurman Design

Number of experiments
32
12
Significant factors
B, C, D
B, C, D
Significant levels
B: +1, C: +1, D: 1
B: +1, C: +1, D: 1
Significant interactions
(B, C) and (B, C, E)
Nondetectable
Optimized value of Y
114.07
116.46
There is no difference in significant factors or significant levels, but there is a slight difference in the optimized value of Y. The factor settings and conclusion remains the same when using either design, but there is a significant difference in the number of experiments that need to be conducted to achieve these results.
When to Use PlackettBurman Design
It is particularly helpful to use PlackettBurman design:
 In screening
 When neglecting higher order interactions is possible
 In twolevel multifactor experiments
 When there are more than four factors (if there are between two to four variables, a full factorial can be performed)
 To economically detect large main effects
 For N = 12, 20, 24, 28 and 36 (where N = the number of experiments)
Drawbacks of PlackettBurman Design
There are also some drawbacks to using PlackettBurman designs that practitioners should be aware of:
 They do not verify if the effect of one factor depends on another factor.
 If you run the smallest design you can, it does not follow that enough data has been collected to know what those effects are precisely.
Conclusion
PlackettBurman design is helpful if complete knowledge about the system is unavailable or in the case of screening with a higher number of factors. But once the significant factors are available and the interactions between the factors are required, it is better to go with full factorial design as it takes the combinations of all the levels between the factors and provides the interaction details.
