Definition of Trend Analysis:

« Back to Glossary Index

If you could somehow predict the future, you might be able to plan better and make your organization more successful. This article will explore three statistical tools for doing trend analysis, how they work, their benefits, and how your organization can apply them.

Overview: What is trend analysis?

Trend analysis is the use of past data to spot patterns, so you can better predict and forecast what the future will look like. While there are many tools and approaches you can use for trend analysis, we will focus on three common statistical methods for doing it. The three tools are: control charts, regression, and time series analysis.

Let’s start with control charts.

Control charts

The control chart is a graphical representation of your process data over time. Data is gathered either individually or in subgroups. Calculations are made of the mean and range or standard deviation, and then plotted on a graph. Control limits are calculated from the data and depict the expected variation of the process over time.

While there is variation in every process, some may be considered common cause resulting from the natural variation of the process factors, or special cause due to some unexpected occurrence.

When interpreting the control chart…

  • You will look for signals of special cause variation so you can investigate and either eliminate the cause if it negatively impacts the process, or incorporate it if it improves the process.
  • You will also look for patterns and trends. These patterns can be shifts in the process average and/or changes in the variation due to increases or decreases in the range or standard deviation.
  • You may also look for data points trending up or down in a significant manner. There are a number of rules used for interpreting control chart patterns that were developed by a group of engineers at Western Electric.

Below is a control chart exhibiting an upward trend, which, in this case, is bad. This should be investigated and the root cause acted upon as appropriate. If not, the trend will likely continue.

Regression

The second tool you can use for trend analysis is regression. This will allow you to observe the relationship between a process variable and time. You can look for a simple linear relationship or more complex non-linear ones.

Data is collected and plotted on an X-Y chart often referred to as a scatter diagram or plot. If your process is changing over time, you will be able to visually see that. Additionally, you can do some calculations and develop a prediction equation that will estimate the value of your process data for a specific time period.

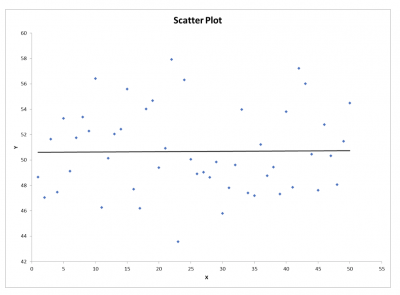

Below is an example of a scatter plot with no trend and one with a downward trend. The formula in the second graph can be used to predict values for the trend.

Time series analysis

The final tool for trend analysis discussed in this article will be time series. This tool is based on the concept of looking for patterns in the data and then extrapolating those patterns into the future.

While regression is useful for examining simple relationships and looking for trends, its downside is the inability to extrapolate much beyond the existing values used in the analysis. This is called intrapolation. On the other hand, the calculations used for time series allows for extrapolation for the future based on the historical data.

Time series is a form of regression modeling with the difference of allowing future predictions or extrapolation. With time series analysis, you can analyze the future for trends and seasonality. The calculations use a variety of weighting, giving the most recent data values more importance than previous data.

The key is to match the correct method of analysis with the patterns. When extrapolating a pattern into the future, you must have a basis for believing that the predicted pattern will occur and that conditions won’t significantly change.

The graph below shows how a trend would be forecast by time series using double exponential smoothing. The green diamonds are the forecasts, and the purple triangles the relative uncertainty of the forecast in the future.

Time series analysis for trend

The graph below shows how trend analysis would forecast and predict for both trend and seasonality.

Time series analysis for trend and seasonality

3 benefits of trend analysis

The ability to predict enhances your ability to plan. The benefits of trend analysis are the key to your ability to predict.

1. Simplicity and availability

Given the sophistication of today’s statistical software, the calculations and display of your trend analysis is relatively simple.

2. Flexible

Trend analysis can be done for forecasting of level processes, trends, and seasonality.

3. Planning

Assuming your trend analysis is relatively accurate, you will be able to plan for future resources, capital expenditures, personnel, cash flow, etc.

Why is trend analysis important to understand?

Given the number of techniques available to do trend analysis, you should understand which one to use and any limitations of its use.

Constraints

The use of regression for trend analysis is common. The problem is that any regression forecasts need to be limited to the boundaries of the existing data. Extrapolating beyond the time frame of your data is not advisable and accuracy becomes dubious. Time series doesn’t have the same limitation.

Which smoothing elements to use

The accuracy of your analysis will be dependent on the proper use of statistics. The weighting factor, alpha, as well your choice of smoothing methodology is important to understand to achieve the best and most accurate forecasts.

Sample size

To properly estimate the future, you will need adequate sample sizes to accurately identify trends.

An industry example of trend analysis

The vice president of sales was doing some strategic planning for one of his top products. He had approximately four years of monthly sales data. To help plan for short-term sales revenue, he decided to do some trend analysis using time series analysis.

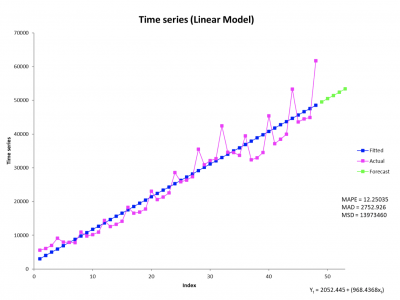

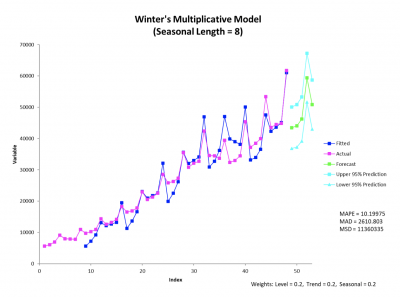

He first attempted to use a simple linear trend. While there was definitely an upward trend to sales, the graph indicated there might also be some seasonality to his sales. As a result, he ran the analysis using Winter’s Multiplicative Model. Based on the lower value for the Mean Absolute Percentage Error (MAPE), it was concluded the Winter’s model provided a better forecast and included an analysis of the trend and the seasonality.

3 best practices when thinking about trend analysis

While your computer and statistical software make it easy for you to do the calculations and create charts, there are a few less technical things you should consider.

1. Measurement system

With trend analysis, you are predicting the future based on your historical data. You must have confidence that you can trust your data. Do a Measurement System Analysis (MSA) study before relying too heavily on your existing or future data.

2. Experiment

Run your analysis using different approaches and assumptions to see if one is better than the other for producing accurate and reliable estimates of the future.

3. Confirm

Use interim confirmations that your methodology is producing believable forecasts. Continue to refine and revise your analysis as more information becomes available.

Frequently Asked Questions (FAQ) about trend analysis

1. What are some problems of doing trend analysis?

There are a few common problems you may encounter when doing trend analysis.

  • Distortions: Historical data may not be accurate and representative. A random event could distort your analysis.
  • Determining cause: It may be difficult to determine the true cause of a trend.
  • Large sample sizes: It can be time-consuming and expensive to collect the necessary amount of data.
  • Errors: Sampling and measurement error and excessive variation in the process may diminish the accuracy and reliability of your forecasts.

2. What is a trend?

In the context of statistics, it is an upward or downward change in measurable process variables over time.

3. Can I have a trend and seasonality at the same time?

Yes. A trend is the upward or downward tendency of a measurable variable over time. Seasonality is a cyclical pattern that repeats itself over time. If your seasonality also exhibits an upward or downward change over time, you can do an analysis and forecast on the combination. The graph below shows what that might look like.

Wrapping up trend analysis

Trend analysis is a strategy that uses patterns inherent in historical data to make future predictions. You can use control charts, regression, and time series tools to accomplish this.

Your predictions become critical in helping you plan for the future. The accuracy of the predictions will depend upon a number of factors such as sample size, statistical assumptions, errors, and whether the underlying process is chaotic and changing.
